Packed full of powerful avionics, the GTN 750 is a fully integrated GPS/NAV/COM/MFD solution. The 6-in.-tall system’s intuitive touchscreen controls and large display give you unprecedented access to high-resolution terrain mapping, graphical flight planning, Geo-referenced charting, traffic display, multiple weather options and much more.

Touch and Go

With the GTN 750’s revolutionary new touchscreen interface, you’re rarely more than two taps away from all of the system’s primary functions. Quickly pan across the map screen simply by swiping your finger across the 6.9-in. diagonal high-resolution TFT display. Or enter waypoint data with the full on-screen keypad. It’s even designed with raised grips in the bezel and a shelf across the lower edge of the display that serve as gripping points in both smoother and turbulent flight conditions. Traditional concentric knobs are also available for those who are used to that style of data input. If you have a GNS 430W/530W, your active flight plan automatically cross-fills from the GTN to the GNS. You can also manually cross-fill user waypoints back and forth between both devices.

Navigate with Ease

The GTN family makes it easier than ever to get where you’re going. Graphical flight planning capabilities allow you to preview your entire route on the map screen and easily enter new waypoints or modify existing ones. The system even lets you load Victor and jet airways. A handy "rubber band" feature lets you grab any leg of your flight plan route and move it to accommodate a deviation or ATC amendment to your flight plan. The GTN 750 also allows you to enter your most recently visited or nearest airports as waypoints and “Direct To” destinations. With high-resolution terrain mapping – including topography features, cities, airports, terminal areas, SUAs and more – and optional Class B TAWS alerting, you’ll find your way around the airspace safely and with ease. Built-in Garmin U.S. FliteCharts™ or optional Jeppesen®-style ChartView™, provides you with Geo-referenced approach plates and procedures, while Garmin SafeTaxi® lets you see Geo-referenced runways, taxiways, FBOs and hangars available in either the U.S., Europe or Canada.

In IFR conditions, you now have more landing options, as well. The SBAS/WAAS-certified, 15-channel GPS receiver generates five position updates per second, enabling you to fly GPS-guided LPV glidepath instrument approaches down to as low as 200 ft. The system also includes a complete package of VHF navigation capabilities, with a 200-channel VOR/ILS with localizer and glideslope. When you load procedures, the GTN will preload NAV frequencies for you to manually switch to and can auto select the VHF NAV source for ILS approaches. In addition, precise course deviation and roll steering outputs can be coupled to select autopilots so that IFR flight procedures may be flown automatically. This includes all ARINC 424 leg types, except RF legs. (For example, when coupled with a G500/G600 Flight Display, the aircraft can fly fully coupled missed approaches, including heading legs.)

Make Communication a Breeze

A fully certified, 2,280-channel VHF communications transceiver provides a standard 10 W (or optional 16 W) of power output. The system is pilot-selectable to both 25 kHz and 8.33 kHz channel spacing. With the GTN 750, you can set your standby Com frequency simply by touching the on screen number pad. Another touch of the screen flip-flops your active and standby frequencies. Recent and favorite user frequencies also are a breeze to access. For added safety, holding down the volume knob will automatically dial in the emergency frequency.

See More than Ever Before

With a wealth of multifunction display capabilities, the GTN 750 brings enhanced situational awareness to your cockpit. With high-resolution terrain mapping – including topography features, cities, airports, terminal areas, SUAs and more – and optional Class B TAWS alerting, you’ll find your way around the airspace safely and with ease with Smart Airspace™. Smart Airspace automatically highlights airspace close to your current altitude and de-emphasizes airspace away from the current altitude, which gives you increased situational awareness.

Add Traffic, Weather and More

The dual-link GDL® 88 allows the GTN 750 to display up to 60 ADS-B traffic targets. TargetTrend™ relative motion technology offers pilots a faster, more intuitive way to judge the direction and closure rate of intruding targets in relation to their aircraft’s position. And unique SURF technology supports the display of ADS-B-equipped surface targets on Garmin SafeTaxi® airport diagrams – including taxiing aircraft and ground vehicles. The GDL 88 can also receive the FAA’s subscription-free FIS-B weather broadcasts that include graphical NEXRAD radar information, as well as NOTAMs, METARs, TAFs and more. Even better the GTN provides the GDL 88 with the WAAS position source required for ADS-B, so a WAAS version of the GDL 88 is not required. And consider adding a Garmin Traffic System to compliment the GDL 88 to provide the best possible traffic coverage from now until 2020.

Couple the system with a GDL® 69 series datalink receiver and you can also receive SiriusXM® weather and radio (subscriptions required). An optional GSR 56 can provide World Wide Weather data virtually anywhere on the globe, as well as the ability to make and receive phone calls and send and receive texts messages while in the air. You can also collect and display your own weather data with an onboard weather radar – like the solid state and Doppler-capable GWX™ 70 with it’s optional turbulence detection and ground clutter suppression features, or a wide range of other third-party systems.

The GTN 750 can control the GMA 35 remote audio panel with SD Audio, Telligence™ Voice Control, clearance recorder, advanced auto squelch and more, as well as the GTX™ 33 remote transponder. When installed together, this setup could save you up to 3 in. of panel space versus a typical GNS 430/530 install.

Stay Up to Date

The GTN 750 features a front-loading SD™ card reader, so you can easily update your databases. PilotPak™ database bundles are now available on a single aircraft basis, saving you money and simplifying the update process -- visit flyGarmin.com to learn more.

GTN 750 is now available for purchase from your Garmin Authorized Dealer. See it in action at an upcoming seminar or in person at a demo dealer location, or with our free downloadable P.C. Trainer or iPad App.

*Most updated features are expected to be available via free software release in the fourth quarter 2012.

• menu-driven graphical interface on color LCD touchscreen display
• feature-rich MFD capabilities: moving map, chart display, airways, approaches and more
• GPS TSO’d to C146c, authorized for Class 1,2,3 (LPV)
• GPS WAAS-certified to Gamma-3 approach capability
• WAAS-corrected GPS signal accuracy to 1 M RMS
• built-in GPS/ILS/VOR/LOC and glideslope capabilities available
• graphical flight planning (including airway navigation)
• VHF COMM transceiver: 8.33 or 25 kHz channel spacing
• com transmit power: 10 W standard, 16 W optional
• extensive optional interface capabilities: lightning, weather, traffic, TAWS-B terrain alerting, and more
• integrated control/display for remote transponder
• Integrated control for remote audio panel functions
• flight control system interface for select autopilots
• optional XM® WX satellite weather and XM Radio
• SafeTaxi® airport diagrams
• award-winning Garmin product support and 2-year warranty

Physical and Performance:
Unit dimensions, WxHxD:	6.25"W x 6.00"H x 11.25"D (15.9 x 15.2 x 28.6 cm)
Display size, WxH:	4.46"W x 5.27"H (11.33 x 13.39 cm); 6.9" diag (17.52 cm)
Display resolution, WxH:	600 x 708 pixels
Display type:	Color TFT LCD; sunlight readable
Weight:	9.3 lb (4.24 kg)
Voltage range:	11-33
Built-in VHF Comm:	yes
Transmit power:	10 watts minimum; 16 watts minimum (optional)
Built-in VOR/Loc/Glideslope:	yes
SBAS/WAAS receiver:	15 channel; TSO-C146c
IFR or VFR:	IFR
Maps, Databases and Memory:
Basemap:	yes
Navigation data:	full and non-precision approaches, DPs and STARs, Victor/Jet Airways, eCharts (w/ Optional Enablement)
Navigation database coverage areas:	Americas, International or Worldwide*
Preloaded Terrain database:	yes
Preloaded Obstacle database:	yes
Preloaded SafeTaxi™ airport diagrams:	yes
Preloaded Garmin FliteCharts®:	yes (U.S. only)
Jeppesen ChartView™:	optional
Waypoints/favorites/locations:	1000
Flight plans:	99 reversible; up to 100 waypoints each
Features and Benefits:
Fly SBAS/WAAS approaches:	yes
Front-loading datacards (conveniently update database information):	yes
XM WX Weather & Radio for U.S. & Canada compatible:	yes
Traffic Information Services (TIS) alerts compatible:	yes
Class B TAWS alerting compatible:	yes
Additional:	2 year warranty Eligible for PilotPak databases *Databases included: world-wide basemap, world-wide obstacles, world-wide terrain, region-specific NavData, US SafeTaxi, US Airport Directory

	Garmin PC Trainer 010-00478-00 $25.00
	Garmin GTN Familiariztion Video/DVD 010-00479-00 $25.00

Product Comparison	GTN 750	GNS 530W
Simple, centralized and intuitive touchscreen pilot interface	Yes	No
Sleek, modern, streamlined design with fewer mechanical knobs, buttons, and switches to learn	Yes	No
Display type	Full color TFT LCD	8-color TFT LCD
Display size (GTN 750 is nearly 100% larger)	4.46”W×5.27”H	4”W×3”H
Display resolution (GTN 750 has over 550% more pixels	600×708 pixels	320×234 pixels
Reduce panel space with remote avionics	Yes	No
Ability to control remote audio panel	Yes	No
Ability to control remote transponder	Yes	No
Airway navigation	Yes	No
Geo-referenced approach charts right on the moving map page	Yes	No
Graphical flight plan editing; “Rubber banding”	Yes	No
Geo-referenced SafeTaxi diagrams that overlay on the moving map page for many airports in the U.S. and Europe	Yes	No
Ability to display and control weather radar like never before	Yes	No
Advanced ADS-B “In” Display (ADS-B symbology, TargetTrend™ relative motion, Surface application, weather products and more)	Yes	No
Optional Worldwide Weather, Voice, Text Messaging	Yes	No
High Resolution Terrain	Yes	No
Advanced weather features (including Canadian WX, cloud tops, Sigmets/Airmets, city forecast, WX forecast, icing potential, turbulence, Pireps/Aireps, and more)	Yes	No
PilotPak eligible, databases for the entire aircraft, for a single annual price	Yes	No
Heading and altitude leg types allow select autopilots to fly missed approaches and other leg types	Yes	No

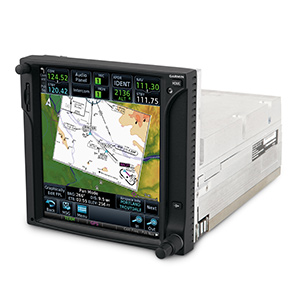

GTN750 Product Images
